SPECIFICATION：

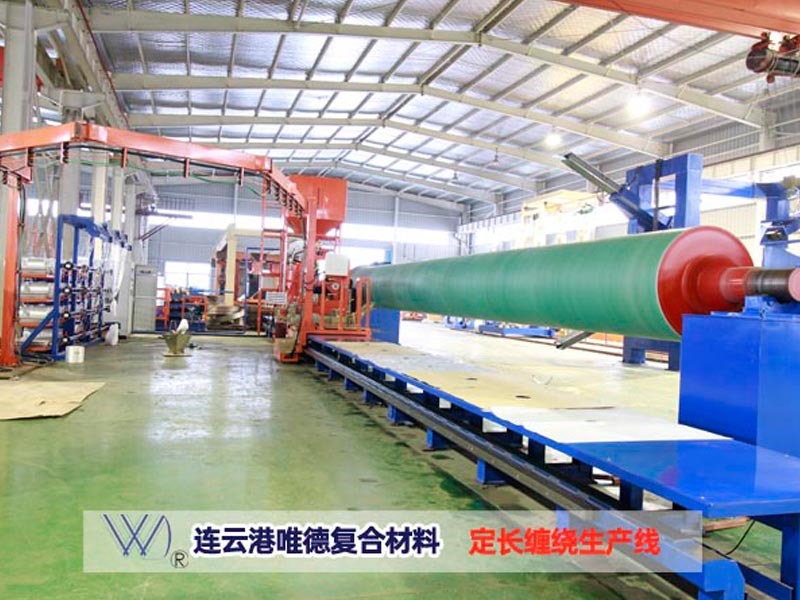

1.DN200-1000*12000 Discontinuous Sand Feeding FRP Pipe Production Line

2.DN200-1600*12000 Discontinuous Sand Feeding FRP Pipe Production Line

3.DN200-2000*12000 Discontinuous Sand Feeding FRP Pipe Production Line

4.DN200-2600*12000 Discontinuous Sand Feeding FRP Pipe Production Line

5.DN200-3000*12000 Discontinuous Sand Feeding FRP Pipe Production Line

6.DN3000-4000*12000 Discontinuous Sand Feeding FRP Pipe Production Line

COMPOSITION：

LINER MACHINE

WINDING MACHINE

CURING MACHINE

DEMOULDING MACHINE

TRIMMING MACHIEN

HYDROSTATIC TESTING MACHINE

RESIN MIXING AND TRANSPORT SYSTEM

SCOPE OF APPLICATION：

1.Sand Feeding FRP Pipe of DN200-1000MM, L≤12000mm

2.Sand Feeding FRP Pipe of DN200-1600MM, L≤12000mm

3.Sand Feeding FRP Pipe of DN200-2000MM, L≤12000mm

4.Sand Feeding FRP Pipe of DN200-2600MM, L≤12000mm

5.Sand Feeding FRP Pipe of DN200-3000MM, L≤12000mm

6.Sand Feeding FRP Pipe of DN200-4000MM, L≤12000mm

PARAMETERS：

1.Product DN：        Ф200mm-Ф1000mm

                        Ф200mm-Ф1600mm

                        Ф200mm-Ф2000mm

                        Ф200mm-Ф2600mm

                        Ф200mm-Ф3000mm

                        Ф3000mm-Ф4000mm

2.Product Length:12000mm

3.Winding Angle：≥45°≤90°

    4.Fiber-drawing Speed：≤110m/min

5.Mandrel Speed: Two output speeds for each mandrel on the basis of different winding diameters

    6.Sand Feeding Mode: Pre-mixed Sand Feeding or Laminated Sand Feeding

    7.Equipment Total Power:      pre-mixed sand feeding--205-240±5KW;

laminated sand feeding--187-222±5KW

    8.Requirement of installation space：W=24000mm，L=84000mm

    9.Resin content of sand feeding layer is controlled by PLC
