SPECIFICATION：

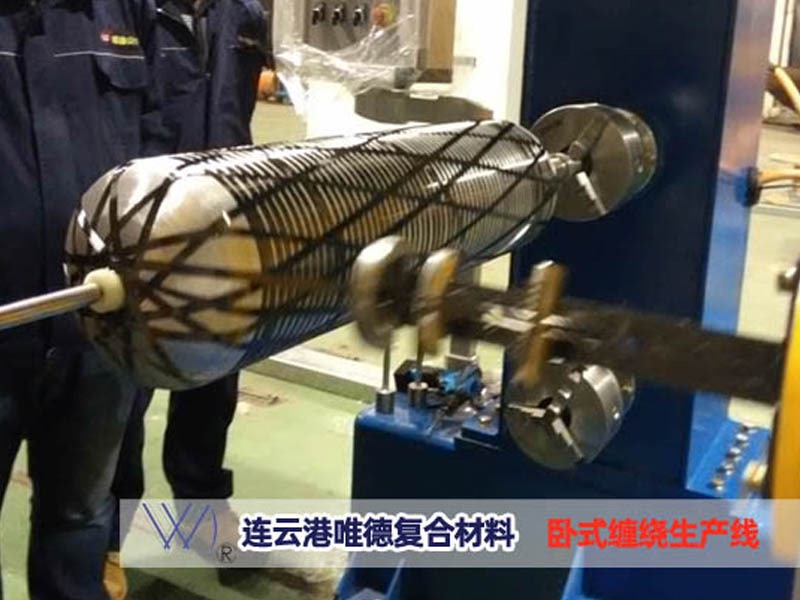

ФD1-ФD2*L FOUR AXES X SPINDLE GANTRY TYPE HIGH PRECISION WINDING MACHINE

REMARKS: Range of D1(min. DN) and D2(max. DN) should be specified when place the order.“X” can be set according to product max diameter and length.(L≤6000mm)

COMPOSITION: GANTRY TYPE TRACK, DRIVING HEADSTOCK, TAILRACK, WINDING TROLLEY, RESIN BATH, ROTARY ROVING GUIDER, CROSEE-FEED ARM AND FIBER ROVING CREEL

SCOPE OF APPLICATION：

1.FRP pipe of DN10-1000mm, L≤6000mm

2.FRP pipe of polyester and epoxy resin

3.Pipe of various fibers: fiberglass, carbon fiber, aramid fiber and basalt fiber

PARAMETERS：

4.Product DN： Ф10mm-Ф1000mm

5.Product Length:≤6000mm

6.Winding Angle：≥0° ≤89°

7.Fiber-drawing Speed：≤100m/min

8.Mandrel Speed: ≤75 rpm/min

9.Trolley Speed: 60m/min

10.Control Mode: Four axes linkage servo control +Yanhua industrial control (Taiwan product)+ PMAC2 LITE PCI (American control panel)

11.Winding software: arbitrary combination of sphere/semi-sphere, cone, cylinder and ellipsoid/semi-ellipsoid

12.Resin Bath: with function of heating which meets the requirement of epoxy products winding

13.Roving Creel: Three types for choice

14.Simplified Tension Creel

15.Mechanical Tension Creel

16.Electronic Tension Creel

17.Equipment Total Power: 22±5KW

18.Requirement of installation space：W=10000mm，L=8600mm ( product length within 6000mm)
