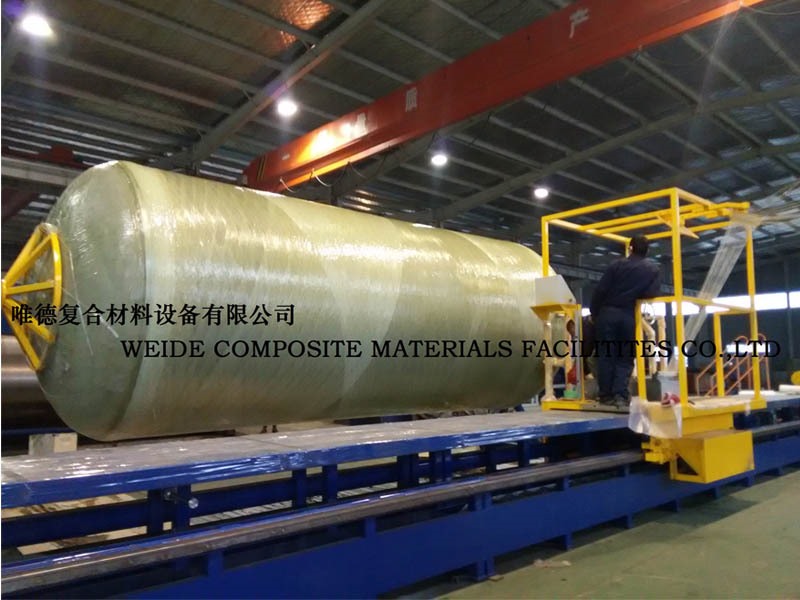

FRP HORIZONTAL TANK PIPE PRODUCTION LINE
SPECIFICATION：
1.DN1000-3000*12000 FRP Horizontal Tank pipe Production Line
2.DN1000-4000*12000 FRP Horizontal Tank pipe Production Line
3.DN2000-6000*12000 FRP Horizontal Tank pipe Production Line
4.DN4000-10000*12000 FRP Horizontal Tank pipe Production Line
COMPOSITION：LINER MACHINE, WINDING MACHINE AND TRANSPORT SYSTEM
SCOPE OF APPLICATION：
1. FRP Tank of DN1000-3000MM, L≤12000mm
2. FRP Tank of DN1000-4000MM, L≤12000mm
3. FRP Tank of DN2000-6000MM, L≤12000mm
4. FRP Tank of DN4000-1000MM, L≤12000mm
PARAMETERS：
1.Product DN： Ф1000mm-Ф3000mm
Ф1000mm-Ф4000mm
Ф2000mm-Ф6000mm
Ф4000mm-Ф10000mm
2.Product Length:6000-12000mm
3.Winding Angle：≥45°≤90°
4.Fiber-drawing Speed：≤110m/min
5.Mandrel Speed: Two output speeds for each mandrel on the basis of different winding diameters
6.Equipment Total Power:30-36±5KW;
8.Requirement of installation space：W=24000mm，L=60000mm
