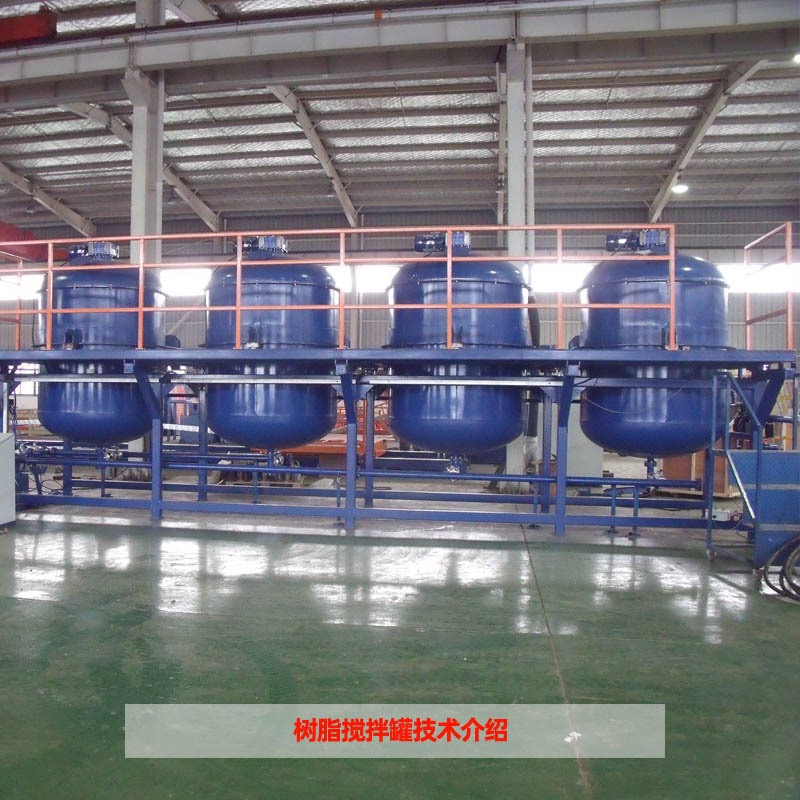

RMTS樹脂儲存攪拌罐介紹
樹脂儲存攪拌罐設備功能、組成及原理：
設備功能：
RMTS樹脂攪拌罐是CFW連續纏繞制管生產線上輔助設備，用于樹脂儲存以及樹脂和促進劑攪拌。
設備組成：
其由攪拌罐體、平臺、過濾器、加熱器、管路、樹脂泵、稱重及電氣控制系統等機構組成。
工作原理：
樹脂攪拌罐通過樹脂泵將樹脂打入攪拌罐內，根據打入罐內樹脂量加入一定比例促進劑然后開啟攪拌電機，待兩種介質攪拌均勻后樹脂通過管路在重力作用下流入樹脂過濾器、熱交換器，經過濾、加熱后泵送到樹脂定量供給系統。樹脂攪拌罐內的樹脂量在計算機屏幕顯示、報警。
Introduction to Resin Mix and Transfer System
Equipment function, composition and working principle:
Function--
As an auxiliary equipment in the continuous winding production line, Resin Mix and Transfer System is designed for the resin storage and the mix and transfer of resin and catalyst.
Composition--
It mainly consists of mixing tanks, platform, filters, heaters, pipeline, resin pumps, weighing device and electrical control system.
Working principle--
Resin is pumped into the mixing tanks by resin pumps and then added catalyst of certain proportion. Start the mix motor. Resin, after a complete mix with catalyst, flows into resin filters and tubular heat exchangers under gravity. Finally, it is transferred to the resin dosing system. Resin mixing tanks are all equipped with weighing device which will help to find whether the resin in the tanks is under a certain amount by warning and displaying on the computer screen.
