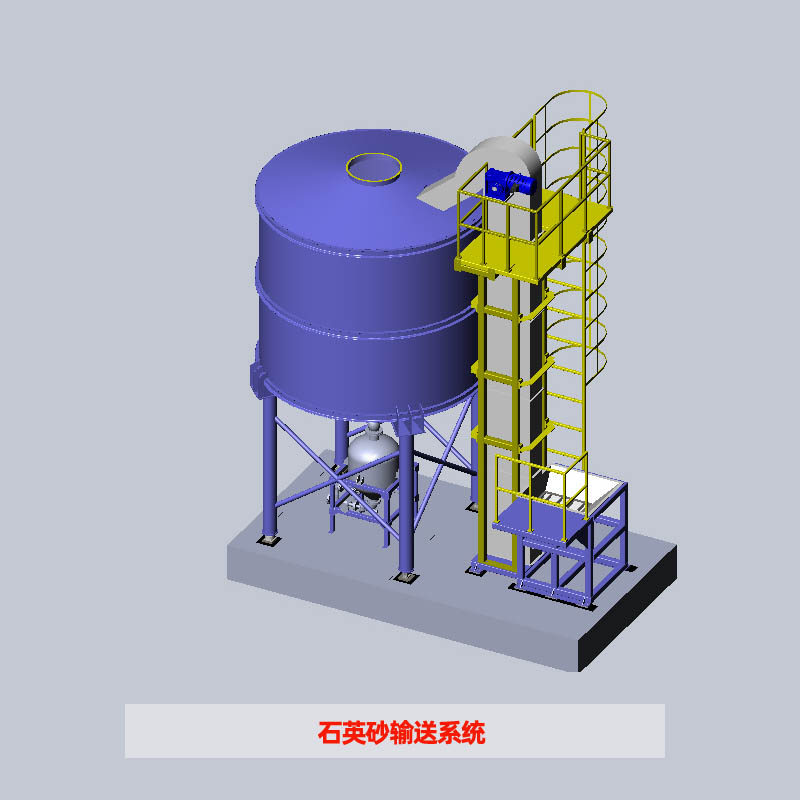

STS石英砂輸送系統介紹

     石英輸送設備功能、組成及原理：

     設備功能：

     石英砂輸送系統是連續制管生產線上輔助設備，用于CFW連續制管纏繞機石英砂的定量輸送。

     設備組成：

     石英砂儲存罐、氣動輸送系統、夾砂裝置、管路、稱重及電氣控制系統等機構組成。

     工作原理：

     石英砂儲存罐有計重裝置，當罐內石英砂儲存重量小于一定量，有報警燈提示要向罐內加入石英砂。當罐內石英砂量大于一定量時報警解除。石英砂儲存罐與夾砂裝置之間輸送受控于計算機，當夾砂裝置內的石英砂量少于一定量時氣力輸送泵會自動向夾砂裝置內注入石英砂，當夾砂裝置內的石英砂量大于一定量時氣力輸送泵會自動停止向夾砂裝置內注入石英砂。石英砂儲存罐、夾砂裝置內石英砂量在在計算機屏幕都會顯示

Introduction to Sand Transport System

Equipment function, composition and working principle:

Function--

As an auxiliary equipment in the continuous winding production line, Sand Transfer System is designed for the sand transport.

Composition--

It mainly consists of sand storage tank, pneumatic transfer system, sand feeding system, pipeline, weighing device and electrical control system.

Working principle--

Sand storage tank is equipped with weighing device. Once the sand storage in the tank is under certain amount, there will be a warning light which indicates to add sand into the tank and light will go out as it's over a certain amount. The transport between storage tank and sand feeding device is controlled by computer. When the sand in the sand feeding device is under certain amount, pneumatic transport pump will automatically add sand into the feeding device and stop as it reaches a certain amount. Sand amount of both storage tank and feeding device will be displayed on computer screen.
