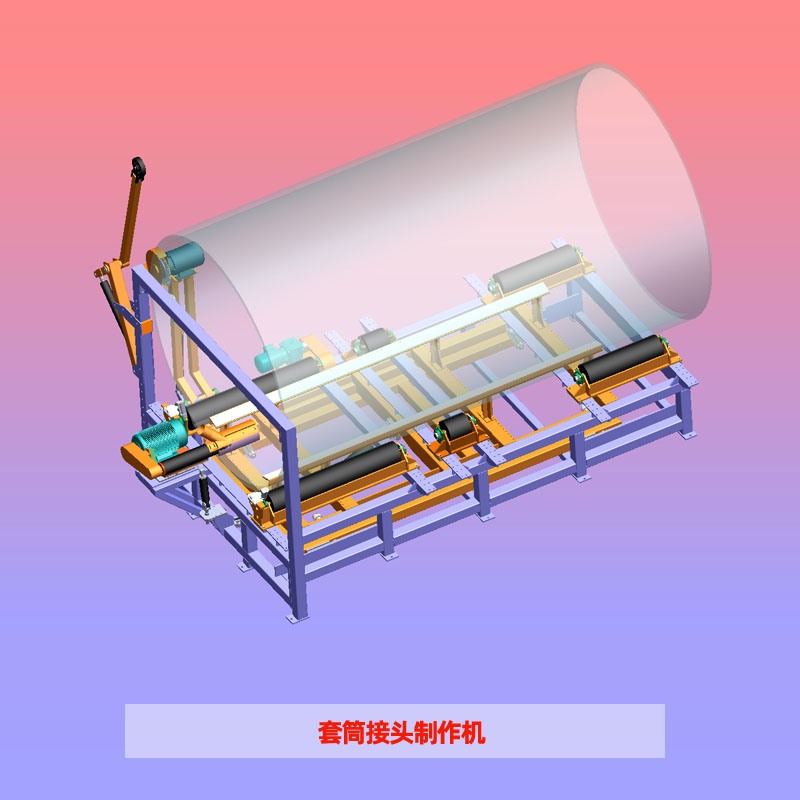

SMM套筒接頭制作機介紹

    設備功能、組成及原理：

    設備功能

套筒接頭制作機功能是連續管道生產線上輔助設備，用于連續纏繞管道套筒接頭（RIKA接頭）生產制作

設備組成

主要由管道旋轉支架、自動進管裝置、尺寸定位系統的磨削頭裝置、切割頭、液壓系統、電控系統、收塵系統等機構組成。

    工作原理

    將制作套筒接頭毛坯管放置在管道旋轉支架旋轉，起動磨削頭裝置，。磨削頭上成形刀具高速旋轉，在液壓油缸驅動下、在套筒接頭毛坯管內壁進刀磨削。當進刀到一定尺寸后。磨削頭上尺寸定位裝置阻止繼續進刀。這樣在毛坯管內壁磨削成二道密封槽和定位槽。起動切割頭按設定好寬度切割下已磨好的槽毛坯管頭。完成的套筒接頭制作，起動自動進管裝置進行下一個套筒接頭磨削。

Introduction to Sleeve Making Machine

Equipment function, composition and working principle:

Function--

As an auxiliary equipment in the continuous winding production line, Sleeve Making Machine is designed for the manufacturing of pipe sleeves (RIKA type).

Composition--

It mainly consists of pipe rotating support, automatic pipe-propelling device, grinding head device with sizing system, cutting heads, hydraulic system, electrical control system and dusting system.

Working principle--

Put the blank pipe for the sleeve coupling making onto the rotating support and make it rotate. Then, start the grinding head device. The form-cutter on grinding head spins at a high speed and, driven by the hydraulic cylinder, grinds on the inner pipe wall. After feeding to a certain size, sizing device equipped on the grinding head will stop the action. In this way, two sealing grooves and one locating groove will be formed in the inner wall of the blank pipe. Then, start the cutting head and cut the ground blank pipe according to the pre-setting width. After the sleeve’s being hoisted away, start the automatic pipe-propelling device to proceed the grinding of next sleeve coupling.
