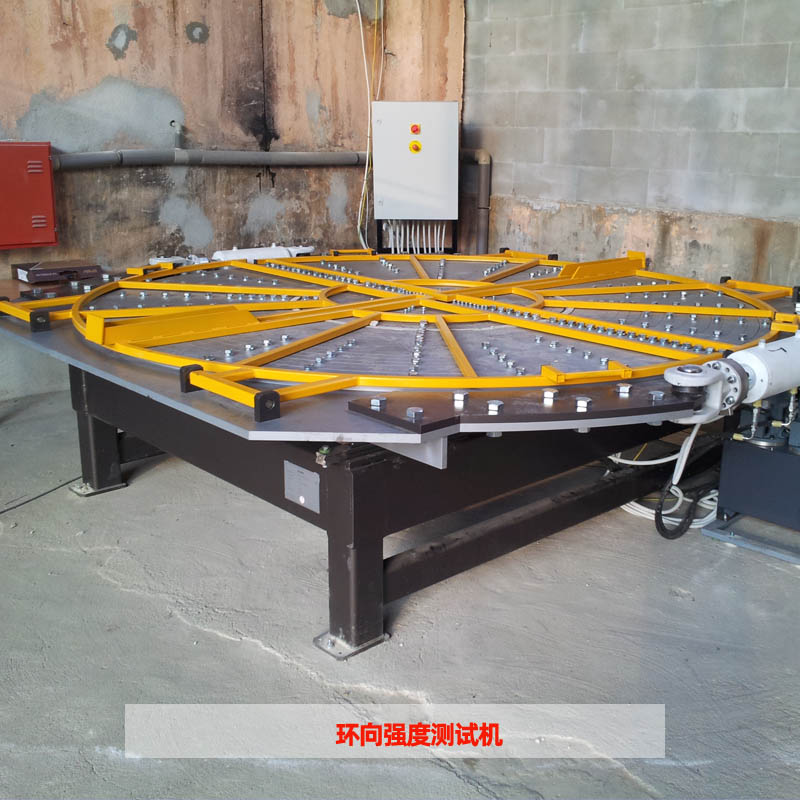

OSTM環向強度測試機介紹
設備功能、組成及原理：
設備功能
環向強度測試機是連續管道生產線上檢測設備，用于連續纏繞管道環向強度測試
設備組成
主要由測試機受力框架、固定分離盤、移動分離盤、移動分離盤導向裝置、拉伸油缸、拉力傳感器、液壓裝置、電控及測試數據顯示系統等機構組成 。
工作原理
將制作好的玻璃鋼測試環放入分離盤，關閉安全罩。啟動注壓系統使分離盤分開，安裝在油缸尾部傳感器記錄下玻璃鋼測試環被拉斷受力全過程，并用在線記錄方式記錄保存下來。
Introduction to Hoop Strength Testing Machine
Equipment function, composition and working principle:
Function--
As an auxiliary equipment in the continuous winding production line, Hoop Strength Testing Machine is designed for the hoop strength testing of continuous winding pipes.
Composition--
It mainly consists of machine stress frame, fixed separating plate, movable separating plate, guiding device of movable separating plate, stretching cylinders, tension sensors, hydraulic system, electrical and testing data display system.
Working principle--
Put the finished GRP hoop onto the separating plate and close the safety guard. Start the hydraulic system to divide separating plate. The tension sensor loaded on the cylinder rear end will record the whole process of testing hoop’s being pulled apart and keep the record online.
