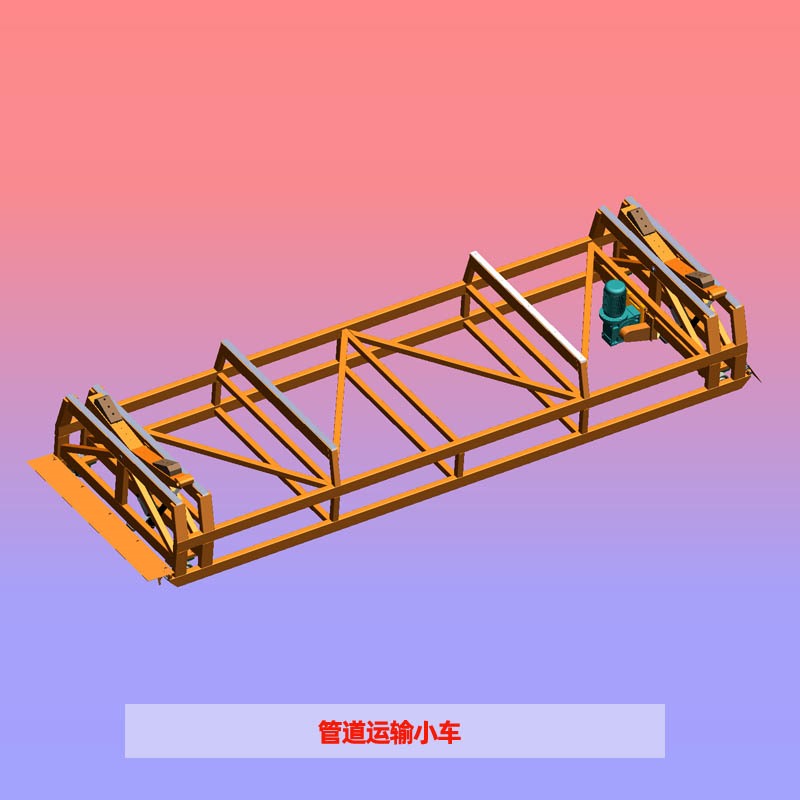

PTT管道運輸小車介紹
設備功能、組成及原理：
設備功能
管道運輸小車是連續管道生產線上輔助設備用于纏繞主機與水壓機之間或管道堆場之間的管道輸送
設備組成
主要由運輸小車車架、管道翻轉裝置 、行走裝置 、電控系統等機構組成 。
工作原理
從主機上生產出管道，經計重軌道滾到運輸小車上，運輸小車上的翻轉裝置自動翻轉將管道翻轉到運輸小車中心，自動行走到水壓測試機一側，起動管道翻轉裝置、管道將滾入水壓機的滾道上。完成管道運輸工作后自動回到纏繞主機邊等待運輸下一根管道。

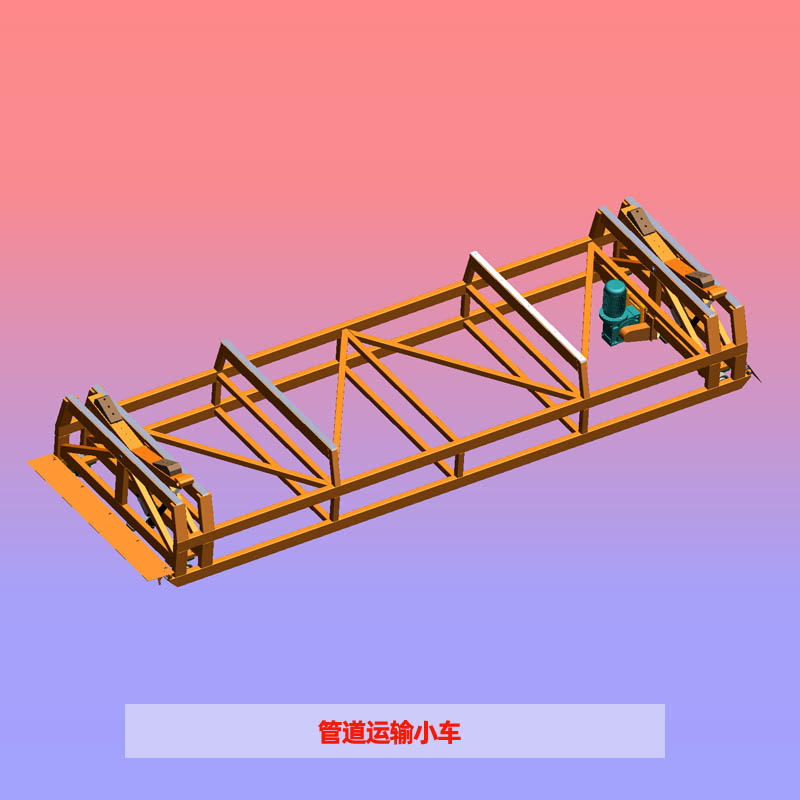

Introduction to Pipe Transport Trolley
Equipment function, composition and working principle:
Function--
As an auxiliary equipment in the continuous winding production line, Pipe Transport Trolley is designed for the pipe transport between winding machine and hydro-testing machine or pipe storage area.
Composition--
It mainly consists of trolley frame, pipe rotating device, running device and electrical control system.
Working principle--
Pipe, produced from winding machine, is rolled onto the transport trolley over weighing track. Then, pipe rotating device automatically turns over the pipe to the trolley center and the trolley runs to one side of hydro-testing machine. Start pipe rotating device again to turn over the pipe onto the track of testing machine. After finishing the transport, the trolley will automatically go back to the winding machine and await next pipe.
